News

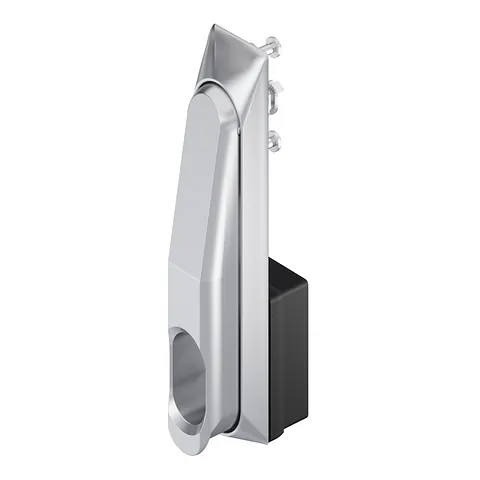

The Swinghandle for Assa Abloy Cylinders
NOW also available as a Stainless Steel Version

Thanks to its high corrosion resistance, the 7-064 Swinghandle is ideal for demanding application areas. With the help of the various adapter sets, the swinghandle can be combined with different cylinder lengths. The new Swinghandle offers a durable, aesthetically pleasing and functional solution for various applications, both indoors and outdoors.

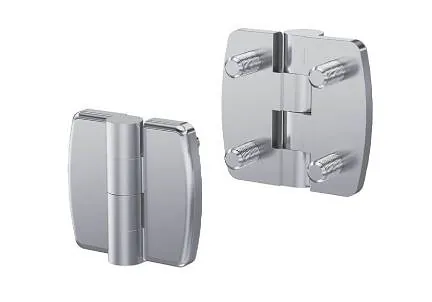

DIRAK Hinge in Stainless Steel:
Innovative design meets proven quality

With the new version of our tried and tested hinge, we have added a solution to our product range that not only offers numerous advantages, but also a wide range of possible applications.

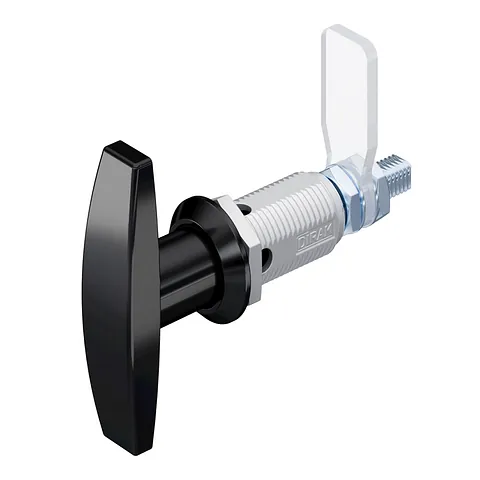

The new DIRAK compression latch with T-handle

Thanks to its IP65 certification in accordance with DIN EN 60529, the compression latch offers optimum protection against dust and water, making it ideal for particularly demanding areas of application. The compression latch can be supplied pre-assembled, which makes installation considerably easier. In addition, the cam can be variably adjusted via the nuts on the square threaded rod to meet specific requirements.

The new DIRAK Compression Latches
in stainless steel for cutout 19.1

With the compression latches 7-067 and 7-068, we are expanding our range with a high-quality component that will enable us to serve new fields of application and meet our customers' requirements even better in the future.

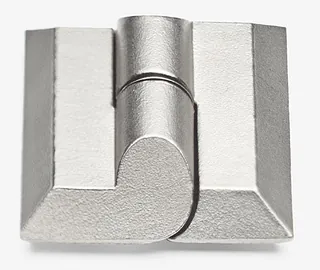

The new DIRAK stainless steel Corner Hinge

for demanding environments, whether in rail traffic, enclosures or in the field of traffic engineering.

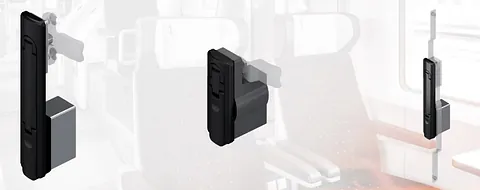

The new DIRAK NT Swinghandle product range

Locking solutions that are both space-saving and vibration-proof are required to securely and conveniently lock cabinets and housings in rail vehicles. The new DIRAK NT swinghandle product range (2-066, 2-066.01 and 3-061) solves that problem and impresses with its flat design.

The new DIRAK Door Contact MLA 1-103

To ensure smooth operation, it must be ensured that doors are properly and visibly locked. The locking status is not only indicated by an LED display, but can also be called up from any location via a management system, thereby achieving a higher security level.

Next-Level Locking Solutions

Sturdy DIRAK Design meets smart iLOQ-Technology.
Here you can find details to our new solution portfolio.

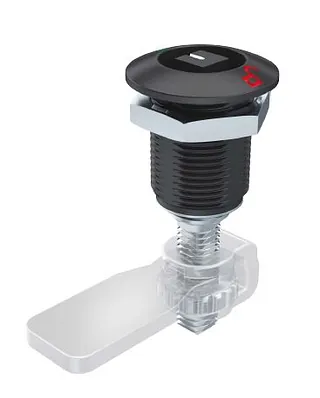

Compression Latch with Round Knob or Wing Knob

Activation in no Time at all – the new Stainless Steel Compression Latches with Round Knob or Wing Knob Insert

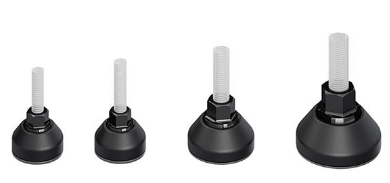

An Efficient Addition – the DIRAK Leveling Foot in New Sizes

The new variants of the DIRAK Leveling Feet of product system 6-009 for screw sizes M10, M12, M16 and M20 give even more flexibility in application.

The modular design makes it possible to determine the H-dimension yourself by using a standard hexagon head screw DIN 933 / ISO 4017.

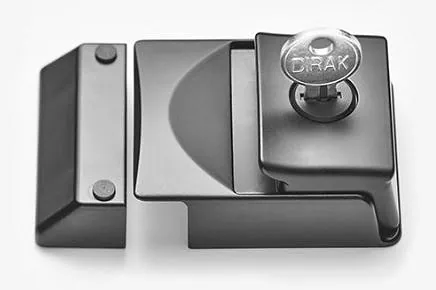

The new DIRAK slam latch with internal unlocking

Flaps or doors are reliably locked on bicycle garages, parcel drop boxes and waste container enclosures, etc. simply by slamming them shut. Our new slam latch solves the problem, that if the door falls shut from the inside during cleaning work, that the person inside has a way to get back out.

A smart, secure outdoor solution - the DIRAK Swinghandle RC2 for iLOQ Half Cylinder S50

Weather resistant, protected against forced breaking combined with the latest NFC technology. A revolutionary concept for locking systems. NFC-capable phones serve as keys and energy sources at the same time. Access rights are managed in real time by the cloud-based iLOQ Manager.

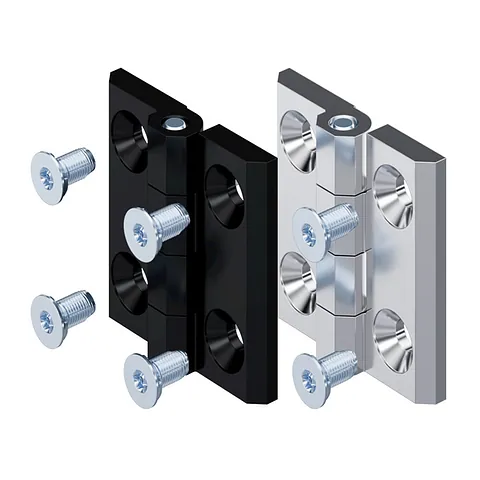

A connection to ensue potential equalization – The DIRAK M6x12 Grounding Countersunk Screws with Segment Cutting Edge and Scraping Tooth in combination with our hinges

To be able to meet the requirements for continuous potential equalization between the door-part and frame-part when needed, we have added the metric thread cutting Grounding Countersunk Screw M6x12 to a selection of DIRAK hinges.

Compensating for Potential – The DIRAK M6x12 Grounding Countersunk Screws with Segment Cutting Edge and Scraping Tooth

The functionality of the DIRAK Grounding Countersunk Screws:

The segment cutting edges and scraping tooth on the countersunk head of the screws enable a mechanical and electrical connection between two sheet metal parts.
The functionality of the grounding countersunk screw is given both with a countersunk hole and with a cylindrical hole.

Hält sicher zusammen – der neue
DIRAK Spannverschluss aus Polyamid

5 good reasons that make the new Over Center Toggle Latch made of Polyamide so interesting: tool-less installation, corrosion resistant, suitable for outdoor use, rounded, inconspicuous design, cost-effective.

MAXIMUM OPTIONS FOR CREATING BALANCE:
The new DIRAK leveling foot

The meticulously engineered design of the DIRAK Leveling Foot makes it possible to use a standard hexagon bolt DIN 933 / ISO 4017 – M8 with freely selectable length as required. This option offers the special advantage of covering all necessary variants with just one product, thus optimizing storage capacity.

A PROJECT FOR SAFETY

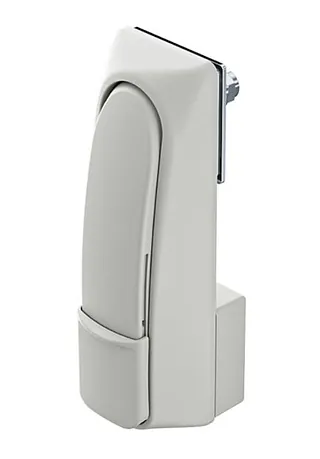

The swinghandle RS 105 for PHZ, RCll

The new RCII handle is a safety-tested swinghandle, specifically for outdoor areas. Since gray housings are preferred in this environment, we have adapted the color of the new swinghandle and provided it with a visually appealing fine texture.The captive, foamed seal and the sliding cap which is concealed by means the cylinder, further facilitate use in outdoor areas.

AN EASY SOLUTION - 2D hinge, adjustable Pr01 180°

The new hinge is a 2D lightweight construction variant made of powder-coated aluminum. The hinge is also suitable for outdoors use. The slide bearing in the frame-part ensures not only durability, but also reliable opening and closing of the application. The knurled pin is protected against being driven out, thereby providing protection against vandalism.

STAINLESS STEEL HINGE WITH FASTENING BRACKET

A robust connection for Pr01 180°. Last year we published this hinge as a zinc die variant. Now it is also available as a stainless steel variant.

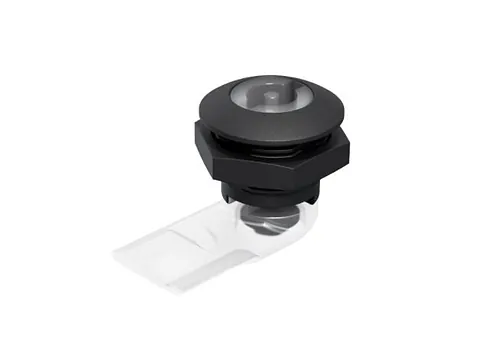

THE NEW POLYAMIDE QUARTER-TURN

We are expanding our assortment of PA Quarter-Turns. The main difference in the enhanced version of Quarter-Turn 1-095 is the new rounded head shape. The improved design offers not only the visual adaptation but above all the advantage that the Quarter-Turn housing is insensitive to accumulations of dirt and water.

QUARTER-TURN WITH FLAT HEAD, L36

Thanks to the flat head shape, it fits well into the overall appearance of machines and housings and lines up flat with the surface. The matt chrome plating follows current design trends, is unobtrusive and is insensitive to scratches and similar damages.

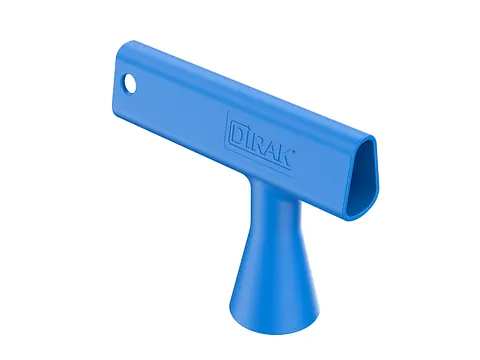

HYGIENIC WRENCH 6-102.01

High-quality and stable. The new hygienic wrench size 13 mm made of Grivory. Tested in accordance with DGUV Test Certificate NV 13090. To prevent damage to the mirror-polished surfaces when hygienic quarter-turns are inserted. A company logo can be added to the wrench on request.

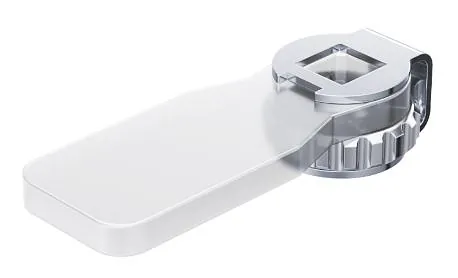

THE CATCH WITH KNURLED WHEEL - STAINLESS STEEL

Heat-restistant and adjustable.

Pressure-Tight System and 90° Redirect FS

Resist Pressure for a Safe Environment:the Pressure-Tight System and the 90° Redirect.

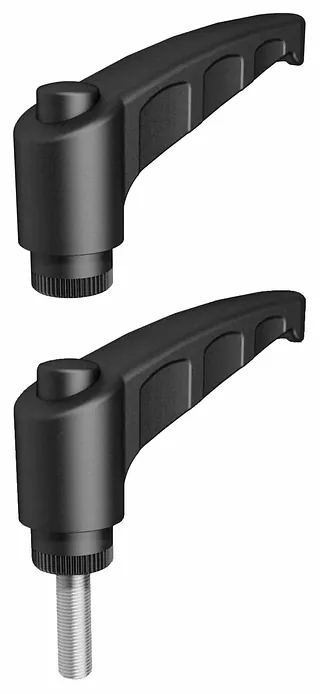

ADJUSTABLE CLAMPING LEVERS

Secure and tool-less clamping of components.

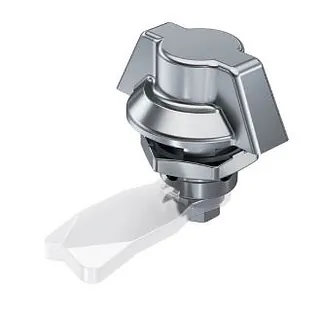

THE DIRAK WING KNOB QUARTER-TURN STAINLESS STEEL

Closed. Protected. Lockable.

HINGE PR01 WITH STUD 180° STAINLESS STEEL

Theft and destruction caused by external influence, especially in outdoor areas are not uncommon. This new DIRAK hinge offers a high safety standard. Therefore it is particularly suitable for the outdoor area. Visible. Secure. Although it is a visible hinge, it ensures increased protection against unauthorized access due to its specific product properties.

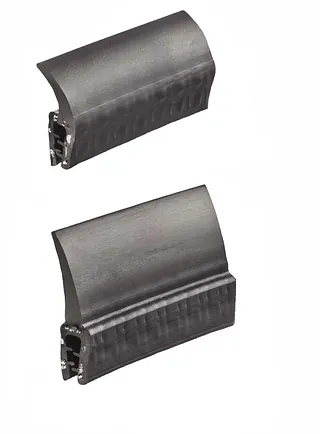

ASSORTMENT EXTENSION

We extend our profile assortment by another variant:
The EPDM clip-on sealing profile with wire carrier.

DIRAK - AISI Classification

Going forward, the international classification of material quality has been set to be the AISI norm. Therefore, DIRAK data sheets, catalog pages and websites are being switched to AISI.

ALUMINIUM HINGES WITH ANODISED COLOURING

Available for FinAlu hinges (long or short versions) and Aluminium profile hinges (65 x 55 mm) with the following functions: opening spring, adjustable friction or free swinging.

Blue, red, gold or bronze are the 4 purposed colours.

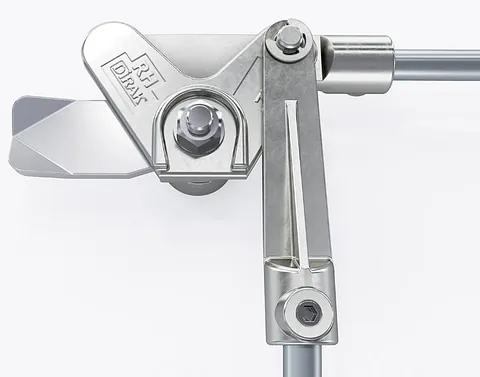

90° REDIRECT FOR MULTI-POINT LOCKING SYSTEM

A compact solution for flexible latching.

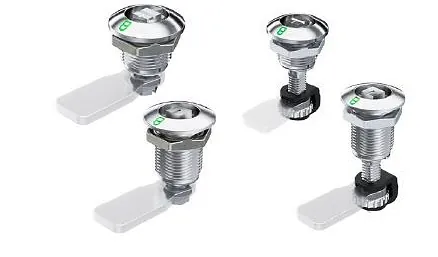

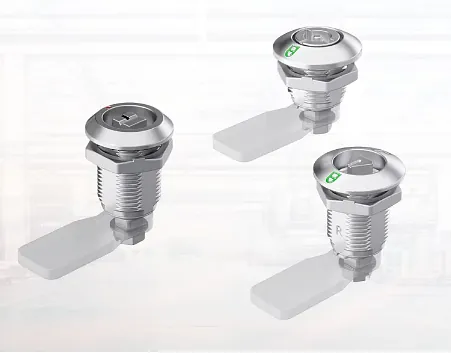

ASSORTMENT EXTENSION: Compressions-Quarter Turns

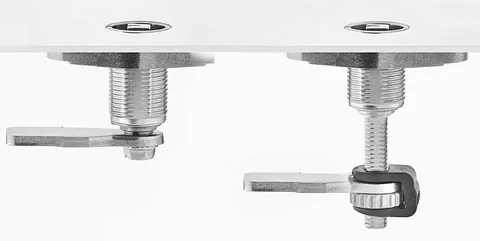

The product groups 7-078, 7-079 and 7-079.01 get a new look. Now available is the new housing length of 22mm with an option for an adjustable nut wheel Rändelradverstellung.

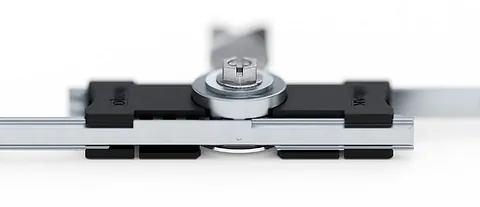

ROD LATCH FOR QUARTER-TURNS L18

The perfect solution for Multi-Point Locking.

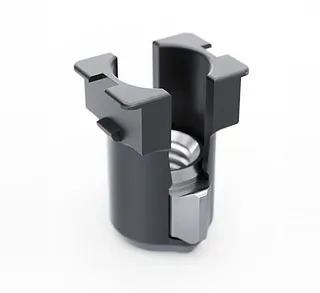

THE DIRAK GROUNDING NUT

Always a secure and cundctive connection

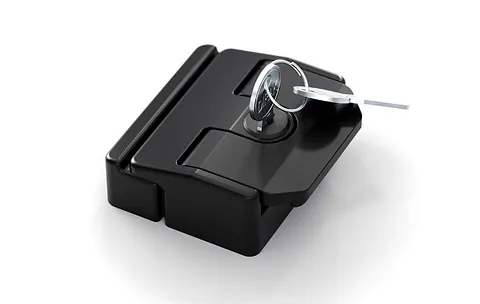

THE DIRAK SLAM LATCH FOR SLIDING DOORS

Durable, smooth operation and lockable

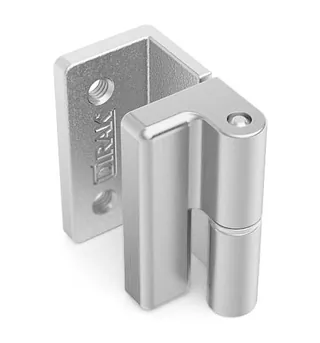

PRODUCT EXPANSION: HINGE Pr05 180° STAINLESS STEEL

We supplement our range of hinges with another variant. The new product system 7-131:

• for 20 mm bending
• Lift-off
• For surface mounted doors
• 180° opening angle / adjacent cabinets
• 270° opening angle / single cabinets
• Protected against corrosion

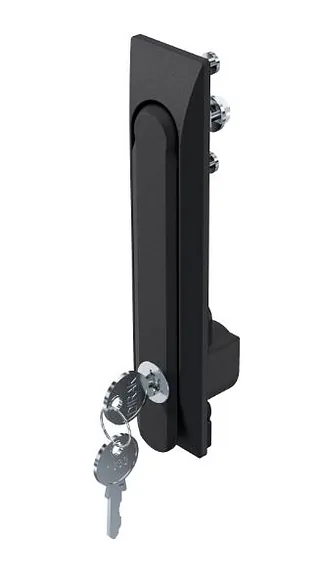

PRODUCT EXPNASION: SWINGHANDLE FS PrC

We supplement our range of swinghandles with another variant. The new product system 3-149, completes the already available swinghandle offer.

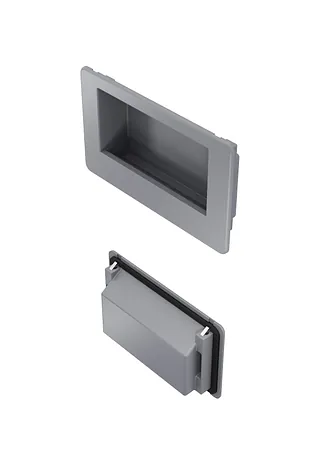

PRODUCT EXPANSION: DST RECESSED HANDLE PA

• Tool-less installation with DIRAK-SNAP-Technonology (DST)
• Handles do not break of, because they do not protrude out of the housing
• Deep meshing can be operated easily with gloves
• IP65 accoring to DIN EN 60529, also for outside use

THE NEW STAINLESS STEEL COMPRESSION LATCH

Flush-mounted design, toll-less adjustment and precise compression with a knurled wheel.

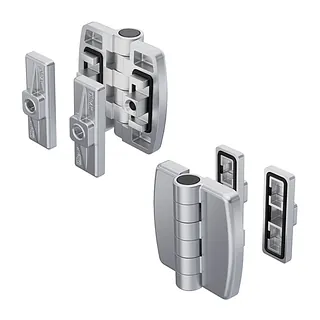

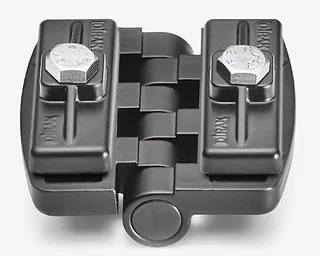

OUR NEW HINGE WITH FASTENING BRACKET

The stepped mounting surface on the back of each hinge half allows for easy alignment in the cutout and the gasketed fastening brackets can be tightened with a single screw, allowing for easy hinge positioning

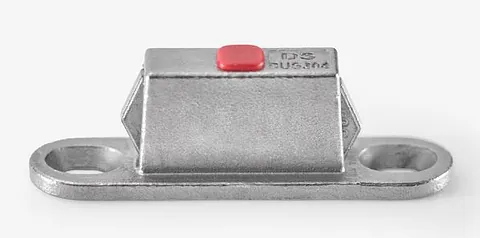

DST FASTENER 30 x 10 STAINLESS STEEL

It has one fixed side and one removable side for outdoor applications

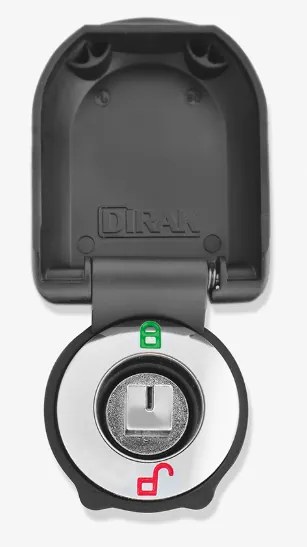

THE NEW SPRING-LOADED FLAP LID FOR QUARTER-TURNS

Protect against environmental contamination

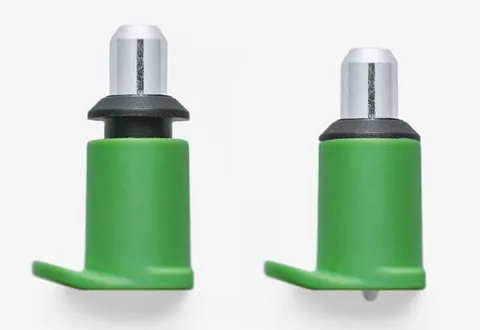

INDEXING PLUNGER WITH REST POSITION

Flexible, quickly installed and usable as a pin hinge

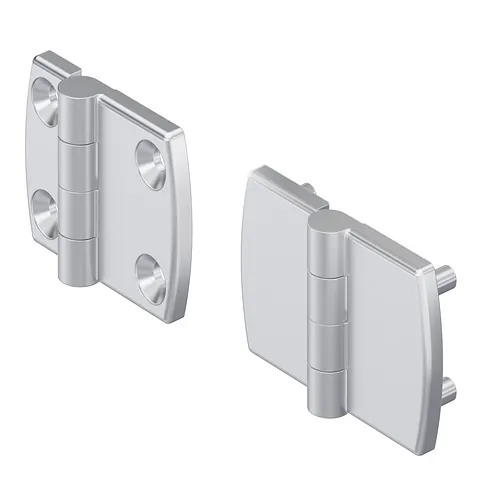

HINGE STAINLESS STEEL PR01 180°

Flexible and robust in any application and each field of use – the lift-off stainless steel hinge for nested doors

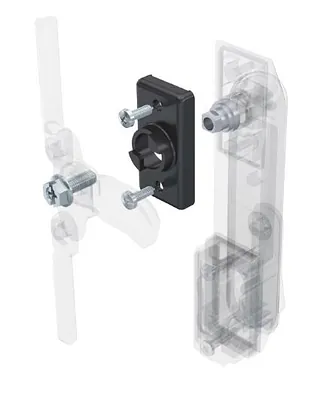

ADAPTER SET FOR SWINGHANDLES 3-152

for conversion of flat rods to round rods
Flexible and easy to use

COMPRESSIONS LATCH FOR STANDARD CAMS

Now also available in zinc die black matt

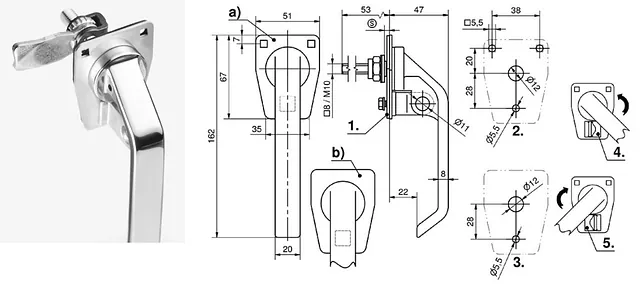

THE L-HANDLE FOR THE PADLOCK

provides an exact hight adjustment with its new square threaded rod - usable in versatile areas

SLIDING SLAM LATCH

Sound- and vibrationless
Ideal for transportation-boxes of small animals or tools

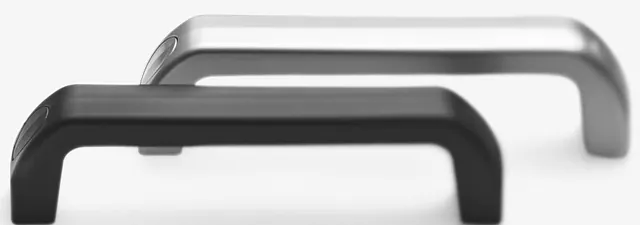

THE BRIDGE HANDLE WITH A NEWLY DESIGNED LENGTH

Ideal handle length - easy to use

Durable design for every application

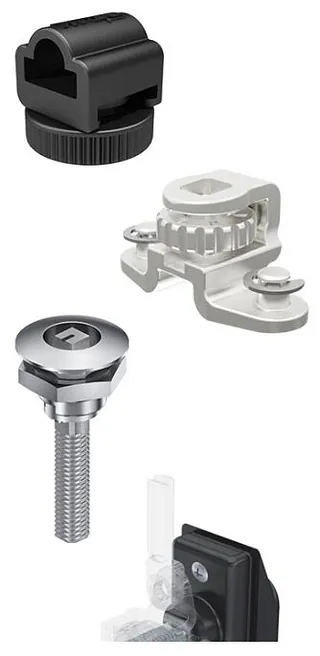

THE NEW HEIGHT-ADJUSTABLE LOCKING SYSTEM

Exact adjustment to your dimensions with the components of this tool-less height-adjustable locking system.

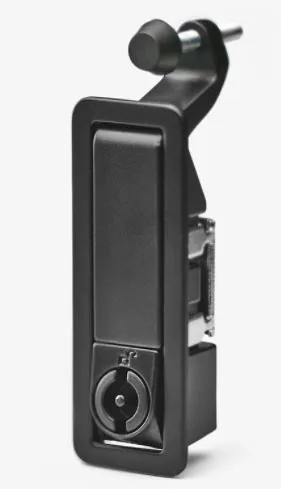

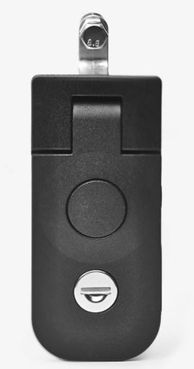

COMPRESSION TRIGGER LATCH 90 x 35

The new compression trigger latch 90 x 35 mm with flush handle plate and unlock key for assembly from the outside.

COMPRESSION TRIGGER LATCH

The trigger latch with compression 86 x 25 mm for fast and easy installation from outside with a wide range of inserts.

THE NEW DIRAK CONCEALED HINGE Pr02 120°

Instantaneous and tool-less installation: The new Concealed Hinge with a spring-loaded handle.

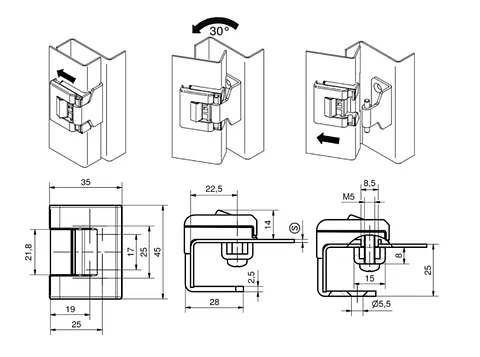

THE NEW DIRAK HINGE FOR SINGLE CABINTES

Remove doors easily and comfortably using our new creative hinge for single cabinets.

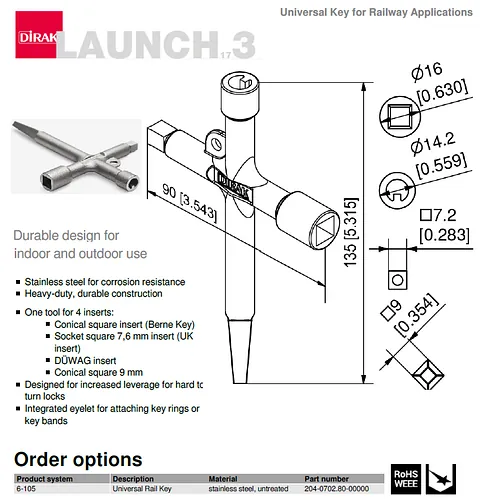

ONE KEY FOR 4 INSERTS

The new DIRAK universal key for railway applications has a durable design for indoor and outdoor use.
